JRready ST6416 Standard.093 Pin and Socket Connectors 3 Circuits (6 Matched Sets), 14-20 AWG, Compatible with Molex Standard.093 3 Pin Male Female Connector, 5.03 mm Pitch, Free Hanging-Fast Shipping

Description

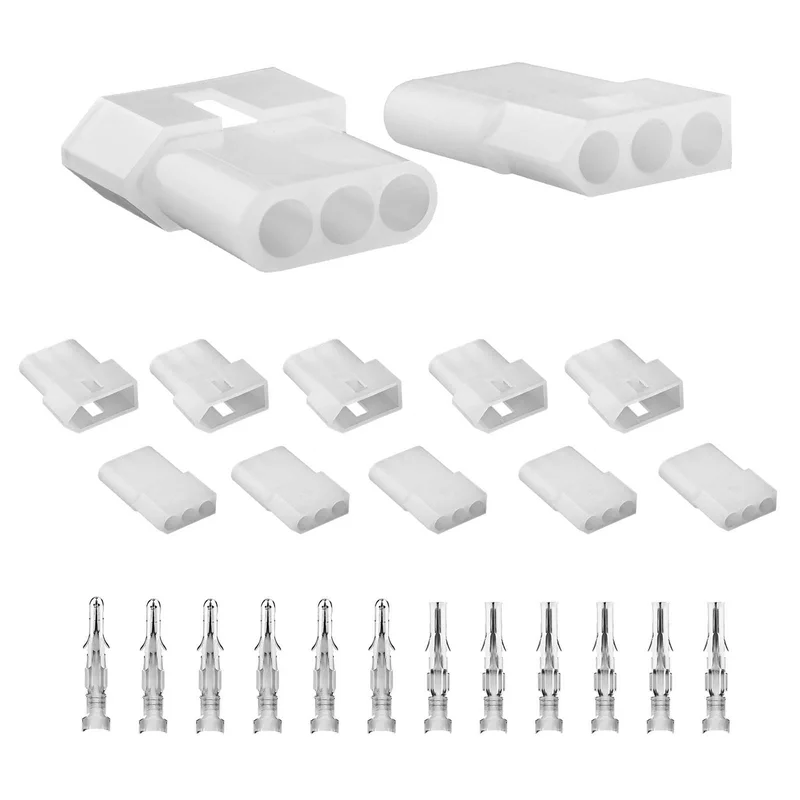

Package List3 pin male and female connector housing 6 pairs, pin and sockets 20 pairs, total 52 PCS.

Description: 2.36mm diameter standard .093″ pin and socket receptacle housing, 3 Circuits, 5.03 pitch, without mounting ears, free hanging.

Housings: made of high quality PA66 materialsturdy and durablehigh and low temperature resistance -40-105.

Contacts: Brass tin plated material, high temperature resistance, corrosion resistance, high conductivity, wire range 14-20 AWG, rated current 12A.

Compatible Molex Models: Connector Housings: 03091032 / 03092032, contacts pin: 02092101 / 02092103socket: 02091102 / 02091104.

ApplicationStandard 0.093″(2.36mm) Pin and Socket, Wire to Wire Connection are ideal for consumer, networking, and data/communications applications.
